1～200 MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-1/200-6S
CONTACT US
  • 1～200 MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:1～200 MHz

Insertion Loss≤ 15.9 dB

Input Port VSWR:Typ.1.12 / Max.1.2

Output Port VSWR:Typ.1.10 / Max.1.2

Isolation :Min.9.0dB

Amplitude Balance:± 0.3dB

Phase Balance:±3°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing :Black paint

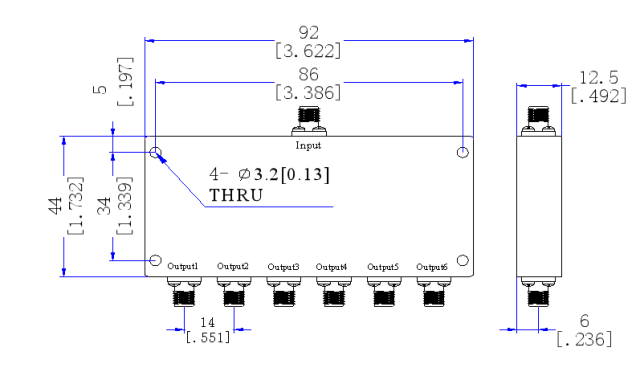

Outline Dimensions:44*92*12.5（mm）

Weight:135（g）
