Specifications
Frequency Range:100～200 MHz
Insertion Loss ≤ 0.6dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR :Typ.1.18 / Max.1.25
Output Port VSWR:Typ.1.12 / Max.1.20
Isolation:Typ.24dB / Min.18dB
Amplitude Balance:± 0.2dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating Splitter:200W; Combiner:20W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

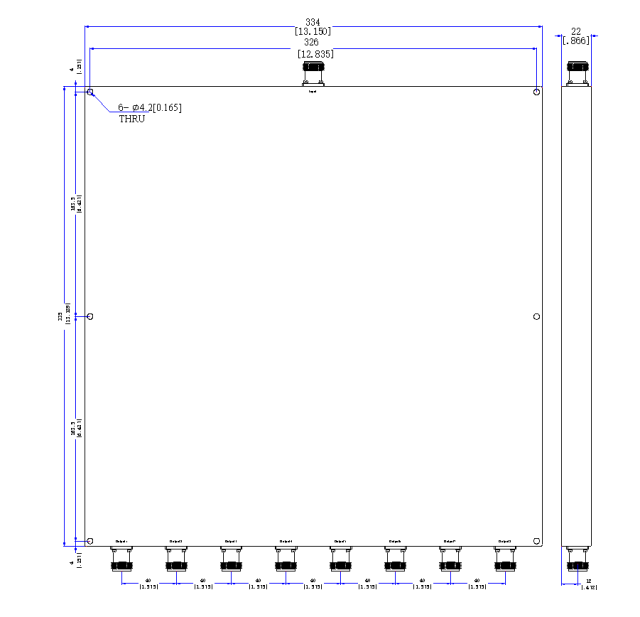

Outline Dimensions:335*334*22（mm）
