Home > All Collections > Others > Power Splitter > 100～2000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 100～2000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 100～2000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

100～2000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.1/2-16S
CONTACT US
  • 100～2000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:100～2000 MHz

Insertion Loss≤ 26.0dB

Input Port VSWR:Typ.1.18 / Max.1.20

Output Port VSWR:Typ.1.16 / Max.1.20

Isolation :Min.5.8dB

Amplitude Balance:±0.5dB

Phase Balance:±5°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Black paint

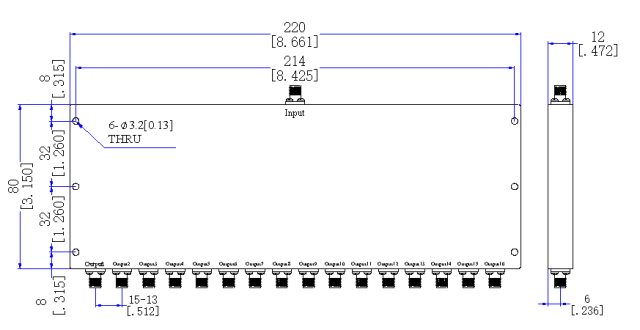

Outline Dimensions:80*220*12（mm）
