Specifications
Frequency Range:100～2000 MHz
Insertion Loss ≤ 1.0 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR ≤1.7: 1（100-190M）＆1. 25: 1（190-2000M）
Output Port VSWR :Typ.1.11 / Max.1.20
Isolation ≥10dB（100-190M）＆20dB（190-2000M）
Amplitude Balance:±0.2dB
Phase Balance :±2°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

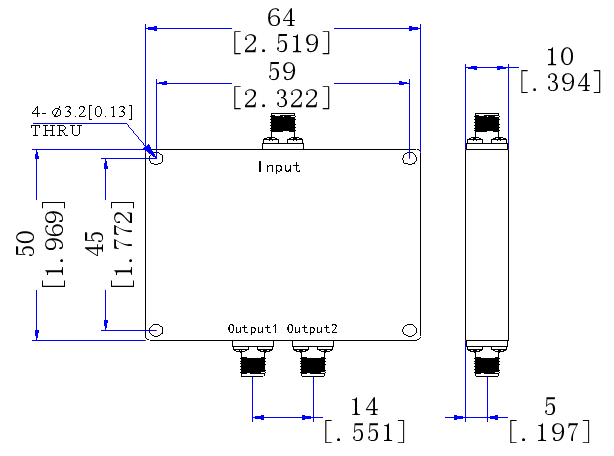

Outline Dimensions:50*64*10（mm）
Weight:80（g）
