100～2000 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.1/2-24S
CONTACT US
  • 100～2000 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:100～2000 MHz

Insertion Loss ≤ 21.6 dB

Input Port VSWR :Typ.1.19 / Max.1.50

Output Port VSWR:Typ.1.15 / Max.1.30

Isolation:Typ. 25dB / Min. 18dB

Amplitude Balance :±0.5dB

Phase Balance :±3°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating Splitter:20W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

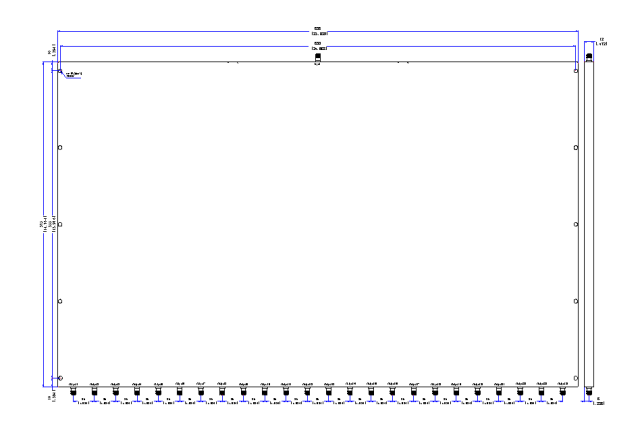

Outline Dimensions:375*636*12（mm）
