Specifications
Frequency Range:100～400 MHz
Insertion Loss ≤ 1.6 dB，100M:1.0dB（Excluding theoretical loss :12.0 dB）
Input Port VSWR ≤ 1.30: 1
Output Port VSWR ≤ 1.20: 1
Isolation:Typ. 26dB / Min. 20dB
Amplitude Balance:±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-35℃ ~ +70℃
Surface Finishing；Sandblasting natural color conductive oxide

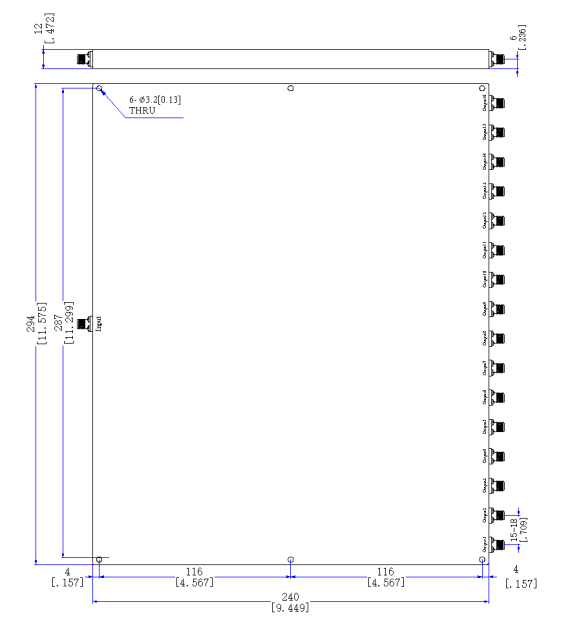

Outline Dimensions：240*294*12（mm）
