Specifications
Frequency Range:100～400 MHz
Insertion Loss ≤ 1.5dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR :Typ.1.18 / Max.1.25
Output Port VSWR :Typ.1.13 / Max.1.20
Isolation:Typ.26dB / Min.20dB
Amplitude Balance :±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:2W,0.25W）
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

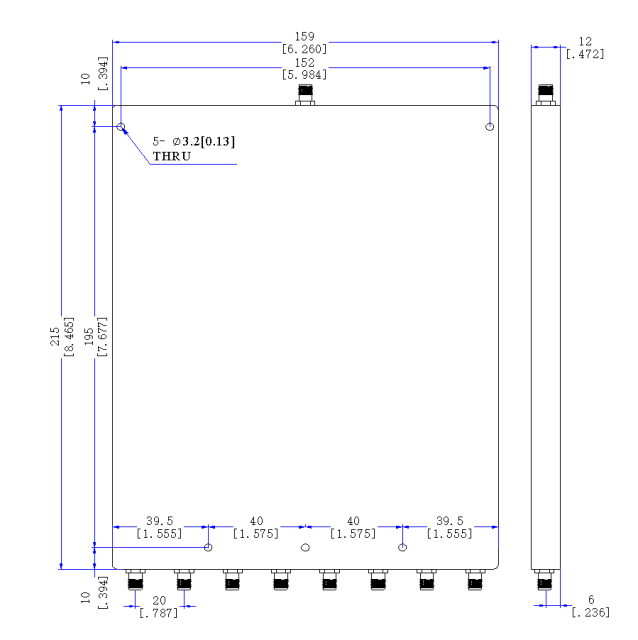

Outline Dimensions:215*159*12（mm）
