Specifications
Frequency Range:100～4000 MHz
Insertion Loss ≤ 6.5 dB（Excluding theoretical loss 9.0 dB）
Input Port VSWR :Typ.1.18 / Max.1.55
Output Port VSWR:Typ.1.15 / Max.1.25
Isolation ≥12dB（100M-150M）﹠20dB（150M-4000M）
Amplitude Balance ≤ 0.5dB
Phase Balance :±12°
Impedance:50 Ohms
Input/Output Connectors:Input：SMA-F；Output：SMA-F
Power Rating:30W;2W
Operation Temperature: -45℃ ~ +85℃
Surface Finishing:Blue paint

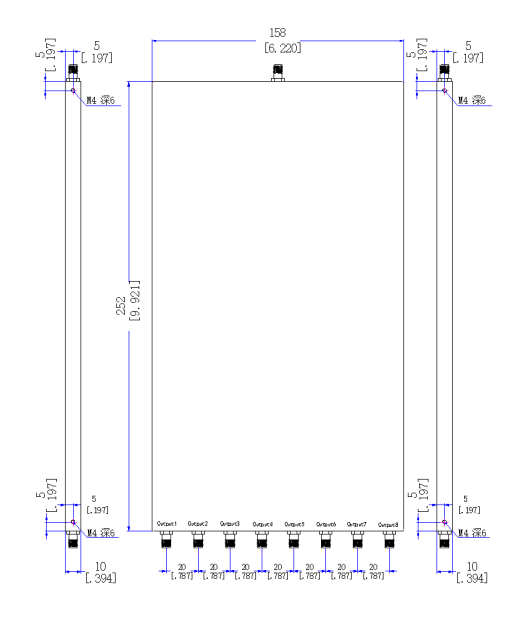

Outline Dimensions:252*158*10（mm）
Weight:1.25（Kg）
