Specifications
Frequency Range:100～4000 MHz
Insertion Loss ≤ 2.0 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR ≤ 1.4: 1（100M-125M）﹠1.2: 1（125M-4000M）
Output Port VSWR ≤ 1.2: 1
Isolation ≤ 16 dB（100M-125M）﹠20 dB（125M-4000M）
Amplitude Balance :±0.2dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

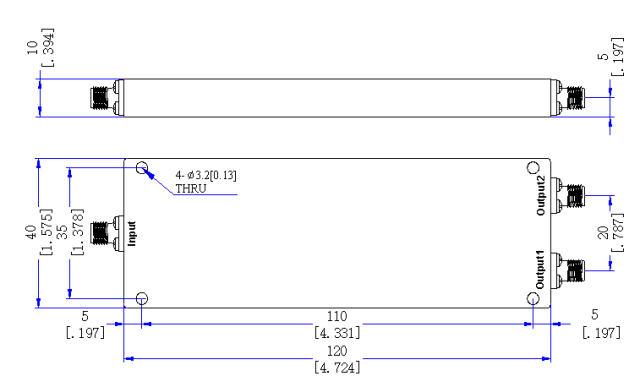

Outline Dimensions:120*40*10（mm）
Weight:110（g）
