100～500 MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-100/500-6S
CONTACT US
  • 100～500 MHz SMA Female 6 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：100-500 MHz

Insertion Loss ≤ 1.6dB（Excluding theoretical loss：7.8dB）

Input Port VSWR ：Max.1.30

Output Port VSWR ：Max.1.30

Isolation：Min.20dB

Amplitude Balance：±0.4dB

Phase Balance ：±4°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating Splitter：1W; Combiner：0.1W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Sandblasting natural color conductive oxide

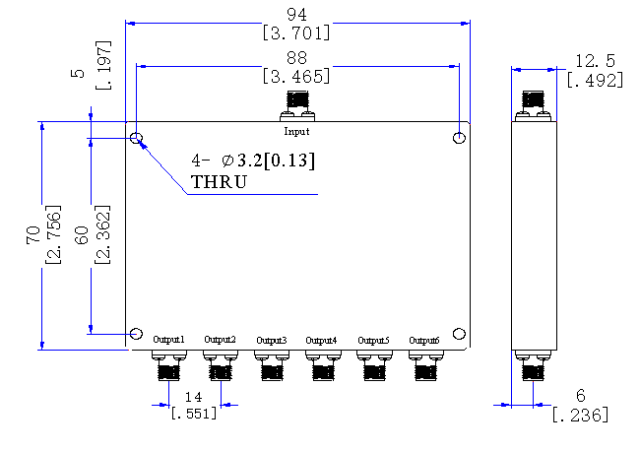

Outline Dimensions：70*94*12.5（mm）
