Specifications
Frequency Range：100～800 MHz
Insertion Loss ≤ 1.5dB（Excluding theoretical loss：9.0 dB）
Input Port VSWR ：Typ.1.18 / Max.1.30
Output Port VSWR：Typ.1.12 / Max.1.25
Isolation：Typ.26dB / Min.20dB
Amplitude Balance:± 0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating Splitter:100W; Combiner:10W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

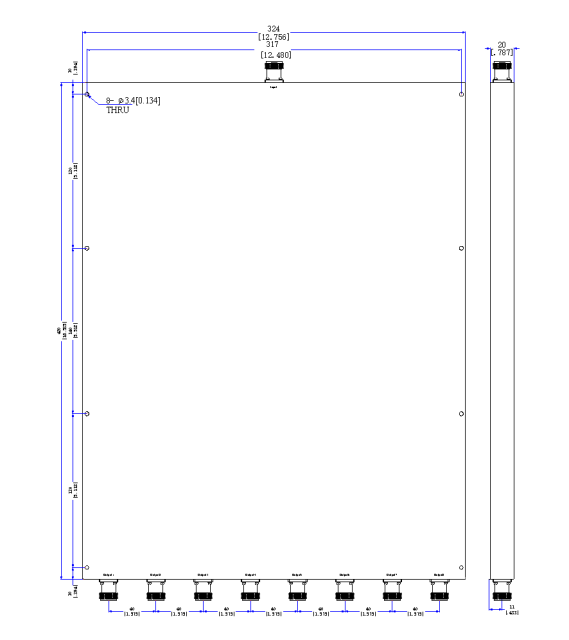

Outline Dimensions:420*324*20（mm）
