Specifications
Frequency Range:1000～18000 MHz
Insertion Loss≤4.5dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.40 / Max.1.60
Output Port VSWR:Typ.1.30 / Max.1.60
Isolation ≥16dB
Amplitude Balance:±0.4dB
Phase Balance:±5°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:10W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Gray paint

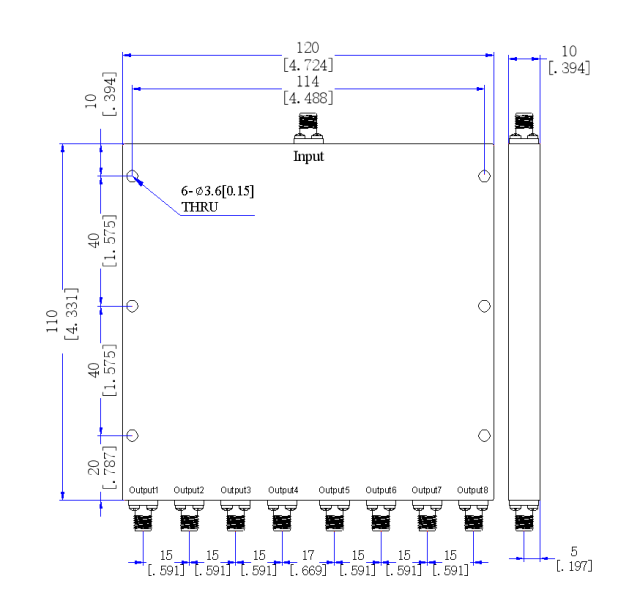

Outline Dimensions:110*120*10（mm）
Weight:400（g）
