Home > All Collections > Others > Power Splitter > 1000～2000 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1000～2000 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1000～2000 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter

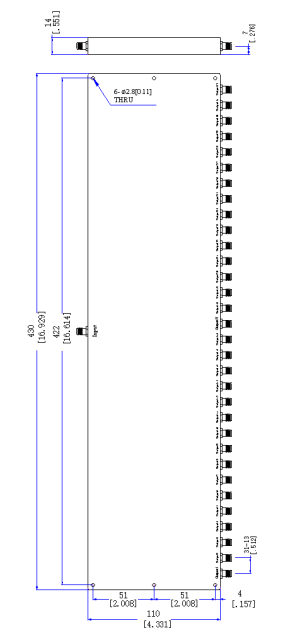

1000～2000 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-1/2-32S
CONTACT US
  • 1000～2000 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：1000～2000 MHz

Insertion Loss≤1.8 dB（Excluding theoretical loss:15.0 dB）

Input Port VSWR：Typ.1.15 / Max.1.4

Output Port VSWR：Typ.1.15 / Max.1.3

Isolation ：Typ.26dB / Min.18dB

Amplitude Balance：±0.5dB

Phase Balance：±8°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Splitter：30W; Combiner:2W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxide
