Specifications
Frequency Range:1000～2000 MHz
Insertion Loss≤0.8dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.25
Output Port VSWR:Typ.1.12 / Max.1.20
Isolation ≥ 20dB
Amplitude Balance:±0.3dB
Phase Balance:±2°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

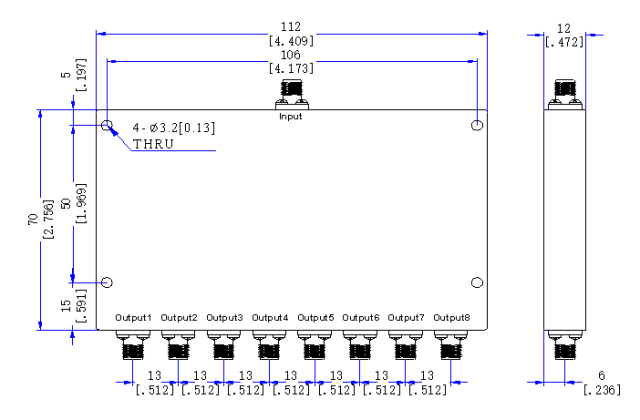

Outline Dimensions:70*112*12（mm）
Weight:280（g）
