Specifications
Frequency Range:1000～2500 MHz
Insertion Loss≤0.6 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.35
Output Port VSWR:Typ.1.15 / Max.1.25
Isolation:Typ.26dB / Min.18dB
Amplitude Balance≤ 0.3dB
Phase Balance:±4°
Impedance:50 Ohms
Input/Output Connectors ：N-Female；SMA-Female
Power Rating:Splitter:100W; Combiner:10W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

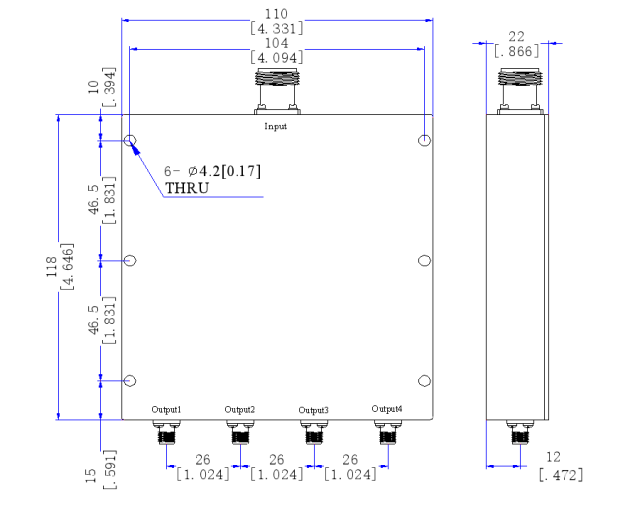

Outline Dimensions:118*110*22（mm）
