Specifications
Frequency Range:1000～3000 MHz
Insertion Loss≤1.0dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.3
Output Port VSWR:Typ.1.12 / Max.1.2
Isolation ≥20dB
Amplitude Balance:±0.2dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors：SMA-Female
Power Rating：Splitter：50W; Combiner：3W
Operation Temperature：-35℃ ~ +75℃
Surface Finishing：Sandblasting natural color conductive oxide

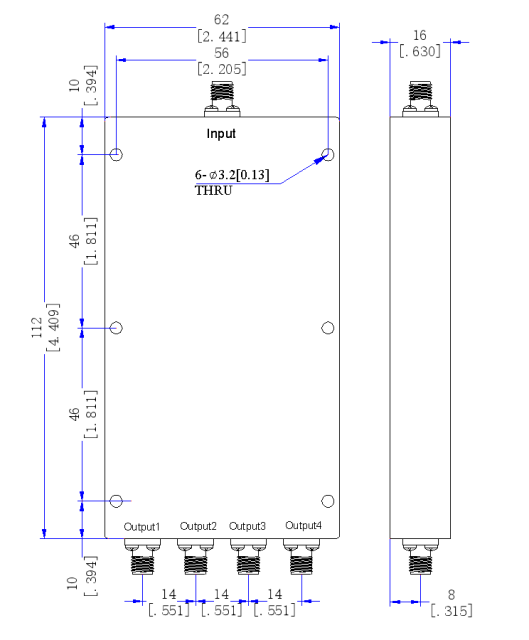

Outline Dimensions：112*62*16（mm）
