  • 1000～6000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1000～6000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter

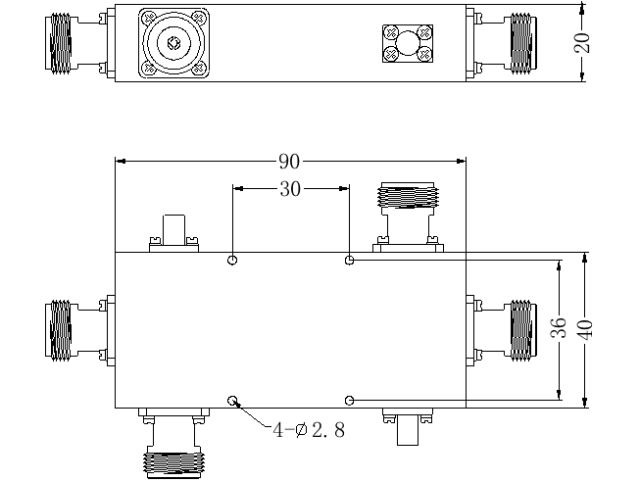

1000～6000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.MDC-1/6-40N2
CONTACT US
  • 1000～6000 MHz N Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：1000～6000 MHz

Insertion Loss≤0.5 dB

VSWR Primary：Type. 1.2 / Max. 1.3

VSWR Secondary：Type. 1.2 / Max. 1.3

Directivity：Min. 16 dB

Nominal Coupling：40±1.2dB

Impedance：50 Ohms

Input/Output Connectors：N-Female

Power Rating：50W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Sandblasting natural color conductive oxide
