Specifications
Frequency Range:10500～15000 MHz
Insertion Loss≤1.2 dB（Excluding theoretical loss:4.8dB）
Input Port VSWR:Typ.1.18 / Max.1.5
Output Port VSWR:Typ.1.15 / Max.1.5
Isolation:Typ.26dB / Min.18dB
Amplitude Balance ≤ 0.6dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

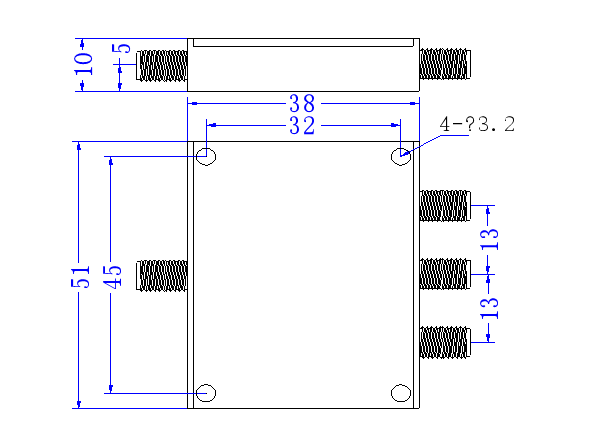

Outline Dimensions:51*38*10（mm）
Weight:60（g）
