Home > All Collections > 1100～1700 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1100～1700 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 1100～1700 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter

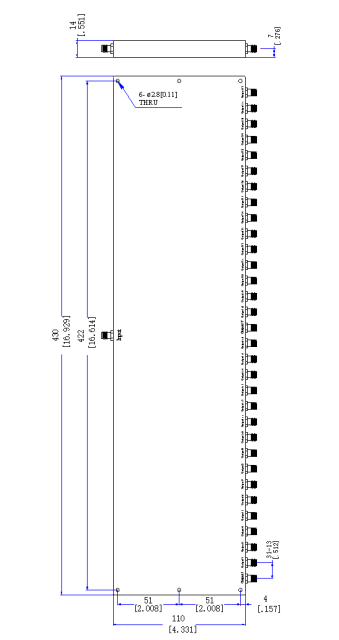

1100～1700 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-1.1/1.7-32S
CONTACT US
  • 1100～1700 MHz SMA Female 32 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：1100～1700 MHz

Insertion Loss≤1.2 dB（Excluding theoretical loss：15.0 dB）

Input Port VSWR：Typ.1.16 / Max.1.25

Output Port VSWR：Typ.1.12 / Max.1.20

Isolation ：Typ.26dB / Min.20dB

Amplitude Balance：±0.4dB

Phase Balance：±5°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：Splitter：10W; Combiner：1W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Sandblasting natural color conductive oxide
