111.975～137 MHz N-Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-111.975/137-2N50
CONTACT US
  • 111.975～137 MHz N-Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:111.975～137 MHz

Insertion Loss ≤ 0.3dB（Excluding theoretical loss:3.0dB）

Input Port VSWR:Typ.1.18 / Max.1.20

Output Port VSWR:Typ.1.14 / Max.1.20

Isolation:Typ.26dB / Min.20dB

Amplitude Balance:±0.2dB

Phase Balance:±2°

Impedance:50 Ohms

Input/Output Connectors:N-Female

Power Rating Splitter:50W; Combiner:3W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxide

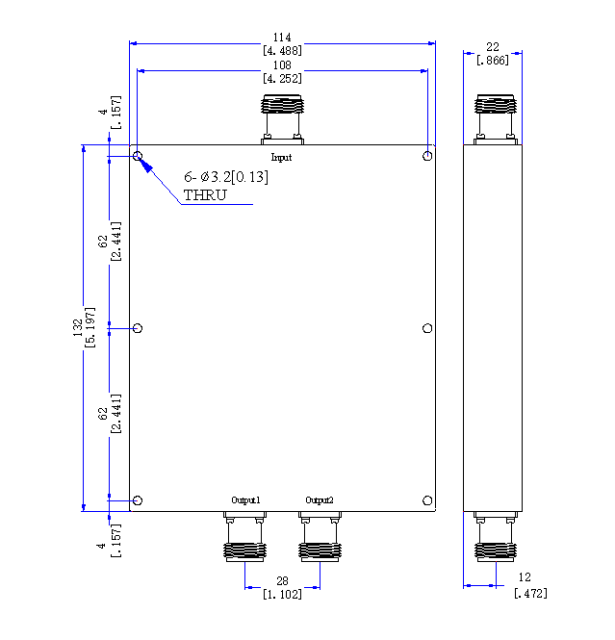

Outline Dimensions:132*114*22（mm）
