Specifications
Frequency Range:1200～1600 MHz
Insertion Loss≤0.4dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.16 / Max.1.35
Output Port VSWR:Typ.1.12 / Max.1.25
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.2dB
Phase Balance:±2°
Impedance:50 Ohms
Input/Output Connectors:N-Female
Power Rating:Splitter:200W; Combiner:20W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

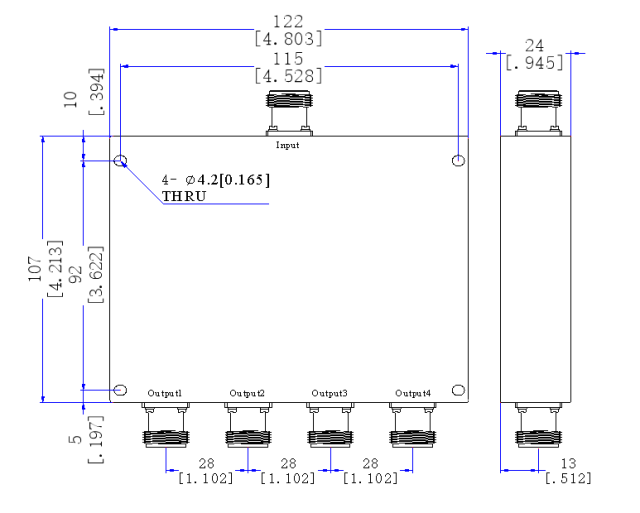

Outline Dimensions:107*122*24（mm）
