Specifications
Frequency Range:12000～13000 MHz
Insertion Loss ≤ 1.0 dB（Excluding theoretical loss:6.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.4
Output Port VSWR:Typ.1.12 / Max.1.3
Isolation:Typ. 22dB / Min. 18dB
Amplitude Balance:±0.3dB
Phase Balance:±5°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:10W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

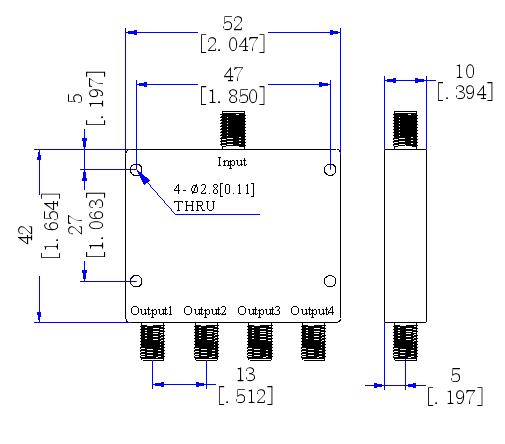

Outline Dimensions:42*52*10（mm）
