Specifications
Frequency Range:1300～1600 MHz
Insertion Loss≤0.4dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.25
Output Port VSWR:Typ.1.12 / Max.1.20
Isolation :Typ.26dB / Min.20dB
Amplitude Balance:±0.1dB
Phase Balance:±2°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:100W; Combiner:3W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Sandblasting natural color conductive oxide

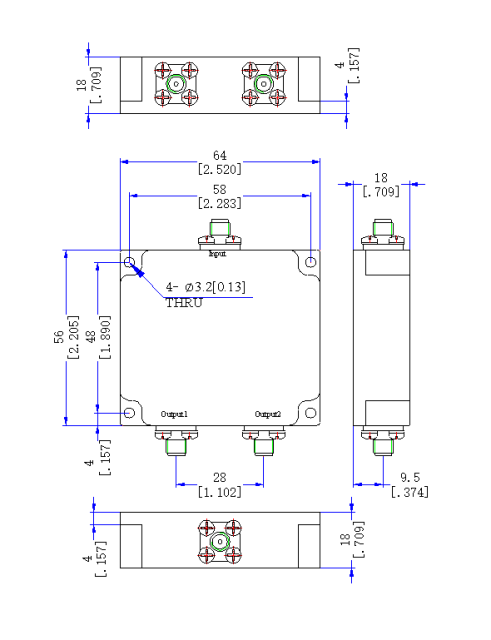

Outline Dimensions:56*64*18（mm）
