Specifications
Frequency Range:14000～18000 MHz
Insertion Loss ≤ 4.5 dB（Excluding theoretical loss:16.8 dB）
Input Port VSWR:Typ.1.26 / Max.1.30
Output Port VSWR:Typ.1.22 / Max.1.30
Isolation:Typ. 22dB / Min. 16dB
Amplitude Balance:±0.8dB
Phase Balance:±12°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:10W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

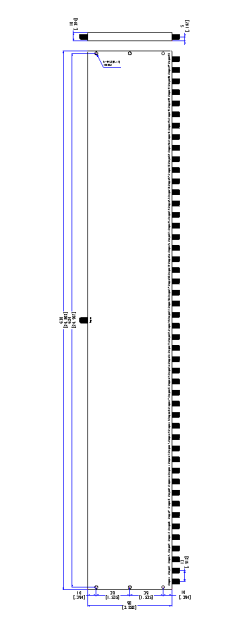

Outline Dimensions:98*630*10（mm）
