Specifications
Frequency Range :15000～18000 MHz
Insertion Loss≤ 2.6dB（Excluding theoretical loss:12.0dB）
Input Port VSWR:Typ.1.22 / Max.1.55
Output Port VSWR:Typ.1.16 / Max.1.25
Isolation :Typ.24dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female；
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing :Black paint

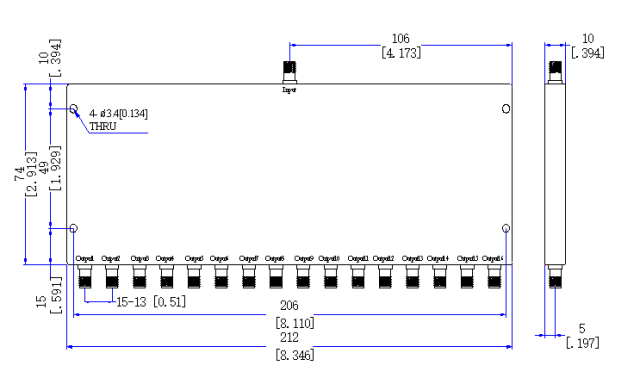

Outline Dimensions:212*74*10（mm）
