Specifications
Frequency Range :15000～18000 MHz
Insertion Loss≤ 2.0dB（Excluding theoretical loss:9.0dB）
Input Port VSWR:Typ.1.20 / Max.1.50
Output Port VSWR:Typ.1.15 / Max.1.30
Isolation :Typ.24dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance:±6°
Impedance:50 Ohms
Input/Output Connectors ：SMA-Female；SMA-Male；
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing :Black paint

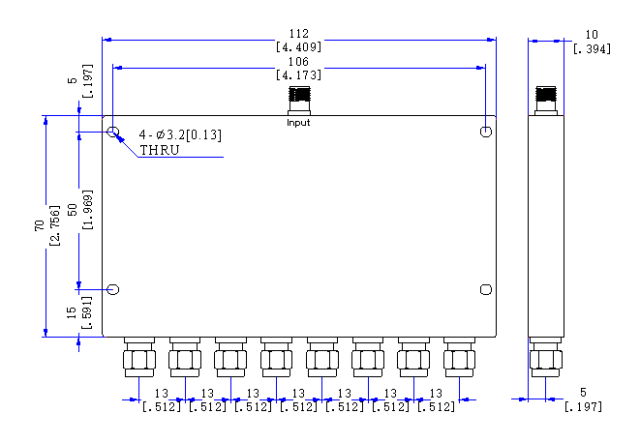

Outline Dimensions:112*70*10（mm）
