Specifications
Frequency Range :16600～17400 MHz
Insertion Loss≤ 2.8dB（Excluding theoretical loss:15.0dB）
Input Port VSWR:Typ.1.22 / Max.1.6
Output Port VSWR:Typ.1.16 / Max.1.3
Isolation:Typ.22dB / Min.18dB
Amplitude Balance:±0.5dB
Phase Balance:±10°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female；
Power Rating:Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

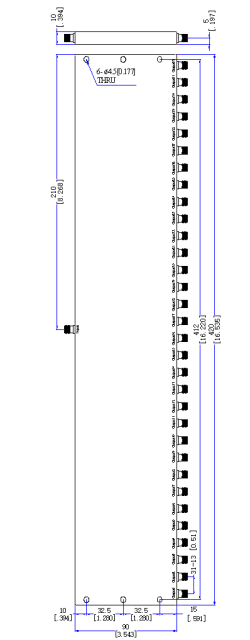

Outline Dimensions:420*90*10（mm）
