Specifications
Frequency Range:1710～2900 MHz
Insertion Loss≤0.4dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.16 / Max.1.25
Output Port VSWR:Typ.1.14 / Max.1.20
Isolation :Typ.28dB / Min.20dB
Amplitude Balance:±0.2dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female（Passivated Stainless Steel）
Power Rating:Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

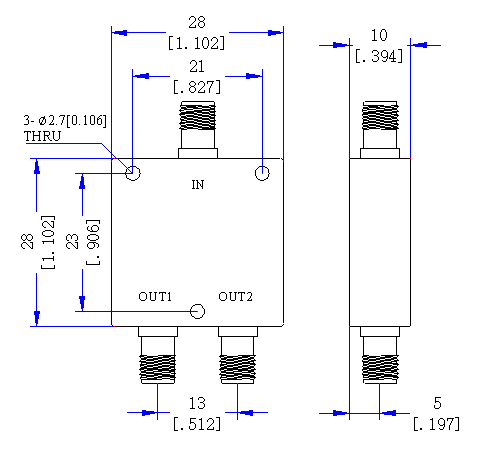

Outline Dimensions:28*28*10（mm）
Weight:21（g）
