Home > All Collections > Others > Power Splitter > 18000～40000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 18000～40000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter
  • 18000～40000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter

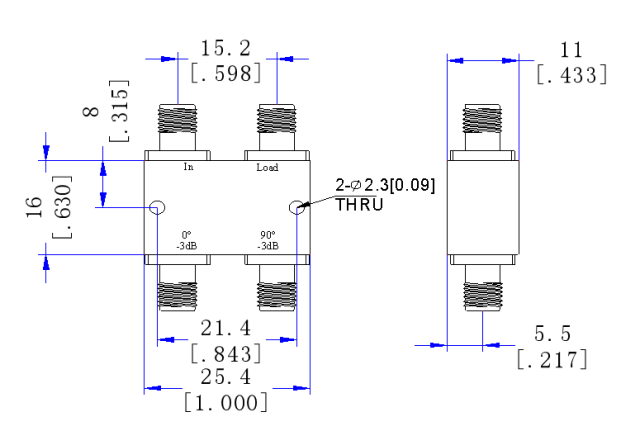

18000～40000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.90°MTH-18/40-K
CONTACT US
  • 18000～40000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：18000～40000 MHz

Insertion Loss≤ 2.2 dB

Primary VSWR：Max.1.80

Secondary VSWR ：Max.1.80

Isolation ：Min.12dB

Amplitude Balance：Max. ±0.7dB

Phase Balance：±10°

Impedance：50 Ohms

Input/Output Connectors ：2.92-Female

Power Rating：30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Black paint
