Specifications
Frequency Range:200～250 MHz
Insertion Loss ≤ 1.4dB（Excluding theoretical loss:12.0dB）
Input Port VSWR :Typ.1.18 / Max.1.25
Output Port VSWR :Typ.1.12 / Max.1.20
Isolation:Typ.26dB / Min.20dB
Amplitude Balance :±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female；
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

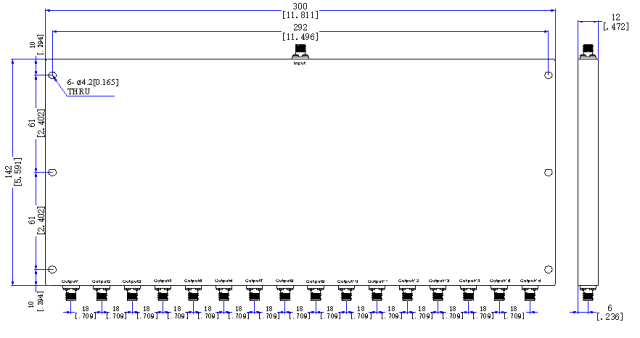

Outline Dimensions:142*300*12（mm）
