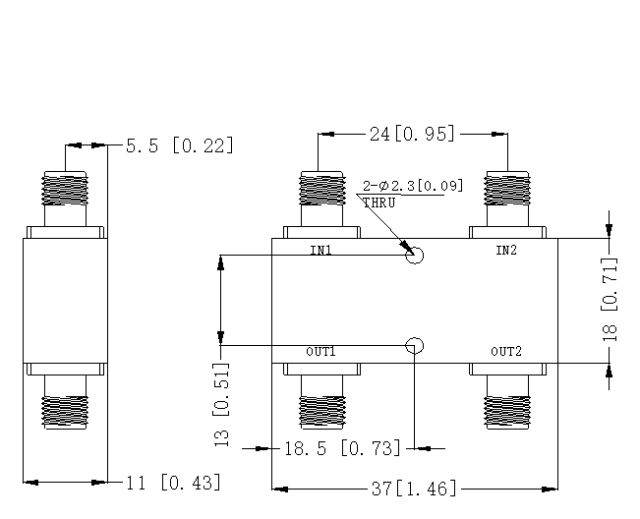

2000～26500 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.90°MTH-2/26.5-K
CONTACT US
  • 2000～26500 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Frequency Range :2000～26500 MHz

Insertion Loss≤ 2.0 dB

Primary  VSWR:Max. 1.8

Secondary VSWR :Max. 1.8

Isolation :Min.10dB

Amplitude Balance:Max. ±1.0dB

Phase Balance:±10°

Impedance:50 Ohms

Input/Output Connectors :2.92-Female

Power Rating:30W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint
