Specifications
Frequency Range：2000～4000 MHz
Insertion Loss≤0.4dB（Excluding theoretical loss：3.0 dB）
Input Port VSWR：Typ.1.16 / Max.1.30
Output Port VSWR:Typ.1.14 / Max.1.20
Isolation :Typ.28dB / Min.20dB
Amplitude Balance:±0.2dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:20W; Combiner:2W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

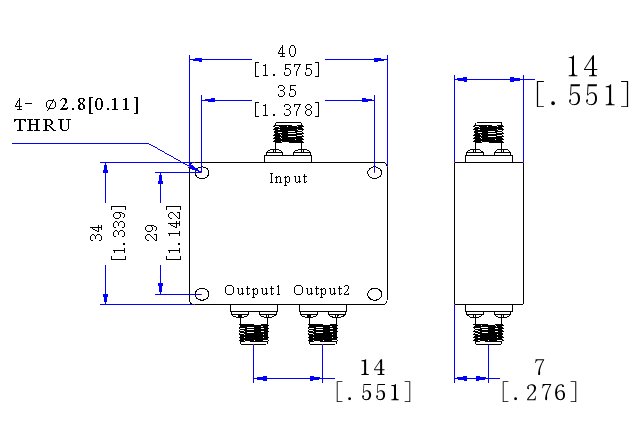

Outline Dimensions:34*40*14（mm）
