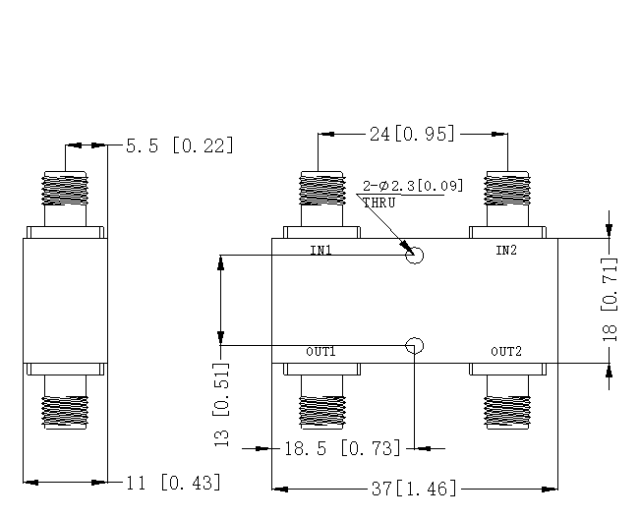

2000～40000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.90°MTH-2/40-K
CONTACT US
  • 2000～40000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Frequency Range:2000～40000 MHz

Insertion Loss≤ 2.8 dB

Primary VSWR:Max.2.0

Secondary VSWR:Max.2.0

Isolation:Min.10dB

Amplitude Balance:Max. ±1.5dB

Phase Balance:±12°

Impedance:50 Ohms

Input/Output Connectors:2.92-Female

Power Rating:30W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint
