Specifications
Frequency Range：240～380 MHz
Insertion Loss ≤ 1.0 dB（Excluding theoretical loss：7.8 dB）
Input Port VSWR ≤ 1. 25: 1
Output Port VSWR ≤ 1. 20: 1
Isolation：Typ.26dB / Min.20dB
Amplitude Balance ：± 0.5dB
Phase Balance ：±5°
Impedance：50 Ohms
Input/Output Connectors：SMA-Female
Power Rating Splitter:10W; Combiner:1W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

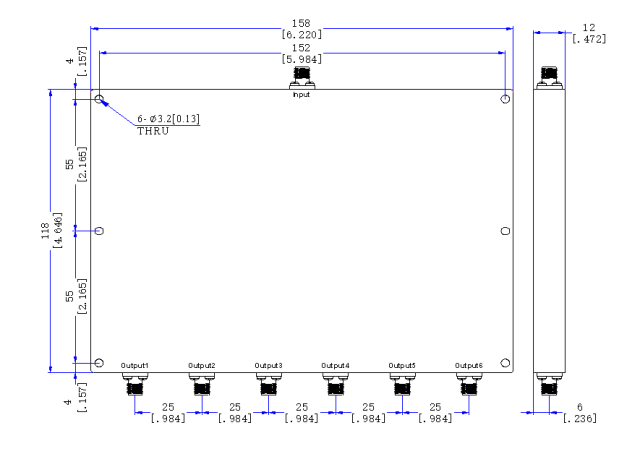

Outline Dimensions:118*158*12（mm）
