Specifications
Frequency Range:2400～2500 MHz
Insertion Loss≤0.4 dB（Excluding theoretical loss 3.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.25
Output Port VSWR:Typ.1.15 / Max.1.20
Isolation:Typ.28dB / Min.26dB
Amplitude Balance ≤ 0.2dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output:Connectors N-Female
Power Rating:200W;15W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Black paint

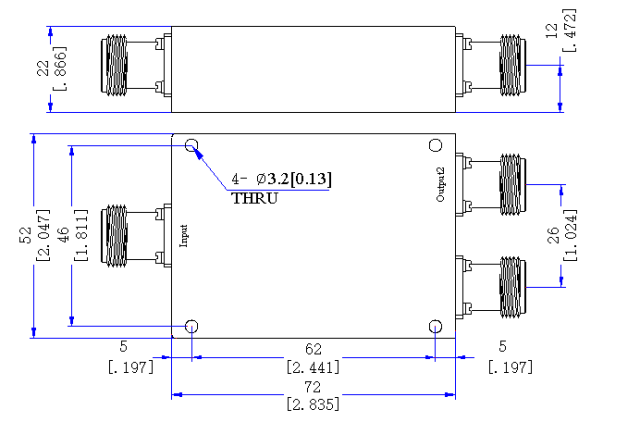

Outline Dimensions:72*52*22（mm）
Weight:380（g）
