Home > All Collections > Others > Power Splitter > 2400～2500 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2400～2500 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 2400～2500 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

2400～2500 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-2.4/2.5-16S
CONTACT US
  • 2400～2500 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:2400～2500 MHz

Insertion Loss≤1.0dB（Excluding theoretical loss:12.0 dB）

Input Port VSWR:Max.1.25

Output Port VSWR:Max.1.20

Isolation:Min.20dB

Amplitude Balance:±0.3dB

Phase Balance:±4°

Impedance:50 Ohms

Input/Output Connectors:SMA-Female

Power Rating Splitter:20W; Combiner:1W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Sandblasting natural color conductive oxide喷砂本导

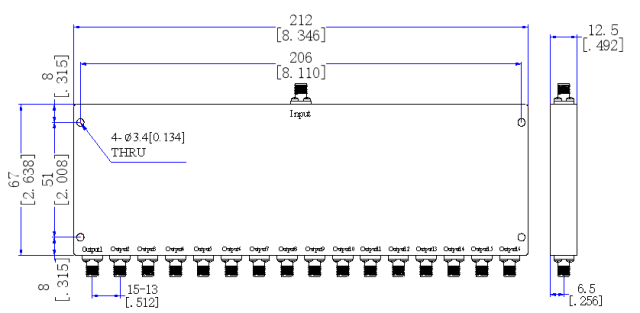

Outline Dimensions:67*212*12.5（mm）
