Specifications
Frequency Range:2400～2500 MHz
Insertion Loss≤0.4dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.25
Output Port VSWR:Typ.1.12 / Max.1.20
Isolation:Typ.26dB / Min.20dB
Amplitude Balance :±0.2dB
Phase Balance:±2°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:50W; Combiner:3W，1.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Sandblasting natural color conductive oxide

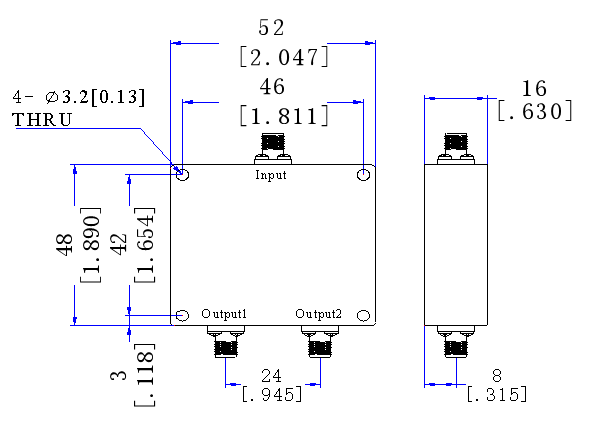

Outline Dimensions:48*52*16（mm）
Weight:100（g）
