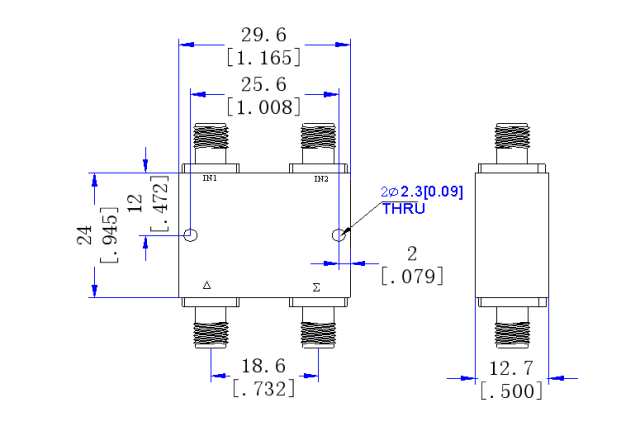

26000～28000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter

No.180°MTH-26/28-K
CONTACT US
  • 26000～28000 MHz 2.92 Female Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range ：26000～28000 MHz

Insertion Loss≤ 2.0 dB

Primary VSWR：Max.1.60

Secondary VSWR：Max.1.60

Isolation ：Min.16dB

Amplitude Balance：Max. ±1 dB

Phase Balance：±8°

Impedance：50 Ohms

Input/Output Connectors：2.92-Female

Power Rating：30W

Operation Temperature：-45℃ ~ +85℃

Surface Finishing：Black paint
