Specifications
Frequency Range:26000～30000 MHz
Insertion Loss ≤ 1.2 dB（Excluding theoretical loss :3.0 dB）
Input Port VSWR :Typ.1.28 / Max.1.5
Output Port VSWR :Typ.1.26 / Max.1.5
Isolation:Typ.22dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:2.92m-Female；2.92mm-Male
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45m℃ ~ +85℃
Surface Finishing:Black paint

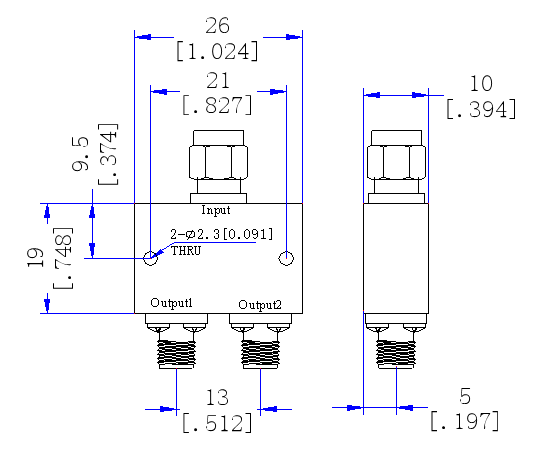

Outline Dimensions:19*26*10（mm）
Weight:24（g）
