Specifications
Frequency Range:27000～32000 MHz
Insertion Loss ≤ 1.8dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.38 / Max.1.5
Output Port VSWR :Typ.1.26 / Max.1.5
Isolation:Typ.24dB / Min.18dB
Amplitude Balance :± 0.5dB
Phase Balance:±8°
Impedance:50 Ohms
Input/Output Connectors :2.92mm-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

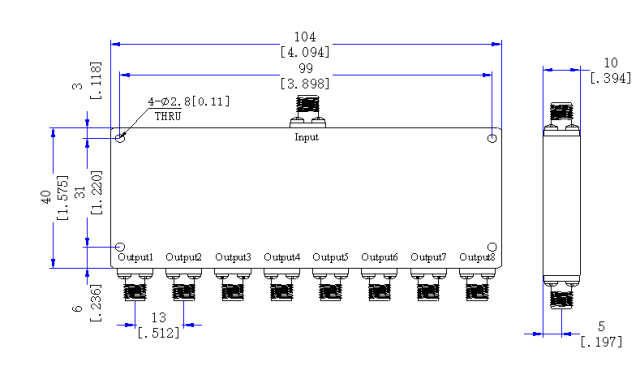

Outline Dimensions:104*40*10（mm）
Weight:140（g）
