30～2500 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.03/2.5-8S
CONTACT US
  • 30～2500 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：30～2500 MHz

Insertion Loss≤ 19.0dB

Input Port VSWR：Typ.1.16 / Max.1.20

Output Port VSWR：Typ.1.16 / Max.1.20

Isolation：Min.17dB

Amplitude Balance：±0.4dB

Phase Balance：±4°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：2W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Black paint

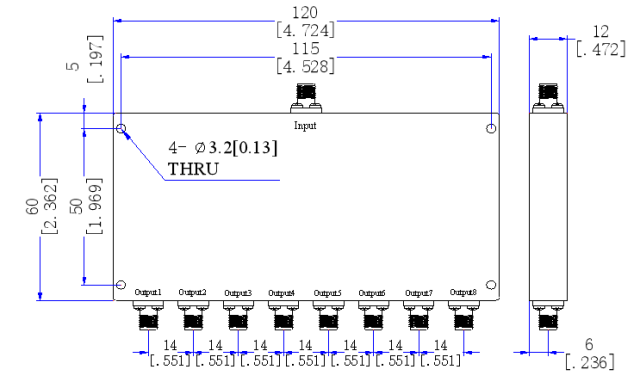

Outline Dimensions：120*60*12（mm）

Weight：220（g）
