30～3000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.03/3-16S
CONTACT US
  • 30～3000 MHz SMA Female 16 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range：30～3000 MHz

Insertion Loss≤ 26.5dB

Input Port VSWR：Typ.1.18 / Max.1.20

Output Port VSWR：Typ.1.16 / Max.1.20

Isolation：Min.22dB

Amplitude Balance：±0.5dB

Phase Balance ：±5°

Impedance：50 Ohms

Input/Output Connectors：SMA-Female

Power Rating：2W

Operation Temperature：-35℃ ~ +75℃

Surface Finishing：Black paint

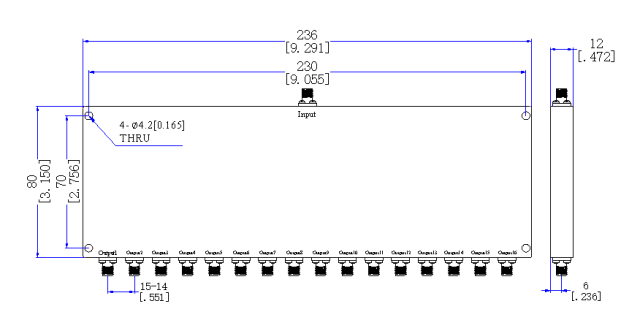

Outline Dimensions：80*236*12（mm）

Weight：575（g）
