Specifications
Frequency Range:300～1000 MHz
Insertion Loss ≤ 0.5 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR :Typ.1.18 / Max.1.3
Output Port VSWR :Typ.1.12 / Max.1.2
Isolation:Typ.26dB / Min.18dB
Amplitude Balance:±0.2dB
Phase Balance :±2°
Impedance:50 Ohms
Input/Output Connectors：N-Female
Power Rating Splitter：200W; Combiner：5W
Operation Temperature：-35℃ ~ +75℃
Surface Finishing：Sandblasting natural color conductive oxide

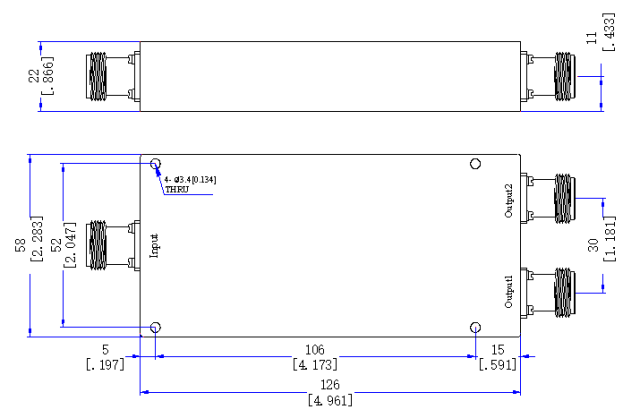

Outline Dimensions:126*58*22（mm）
Weight:350（g）
