300～1500 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.3/1.5-8S
CONTACT US
  • 300～1500 MHz SMA Female 8 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:300～1500 MHz

Insertion Loss ≤ 1.4dB（Excluding theoretical loss:9.0dB）

Input Port VSWR:Typ.1.18 / Max.1.25

Output Port VSWR:Typ.1.12 / Max.1.20

Isolation:Typ.26dB / Min.20dB

Amplitude Balance :±0.4dB

Phase Balance :±5°

Impedance:50 Ohms

Input/Output Connectors :SMA-Female

Power Rating Splitter:30W; Combiner:2W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

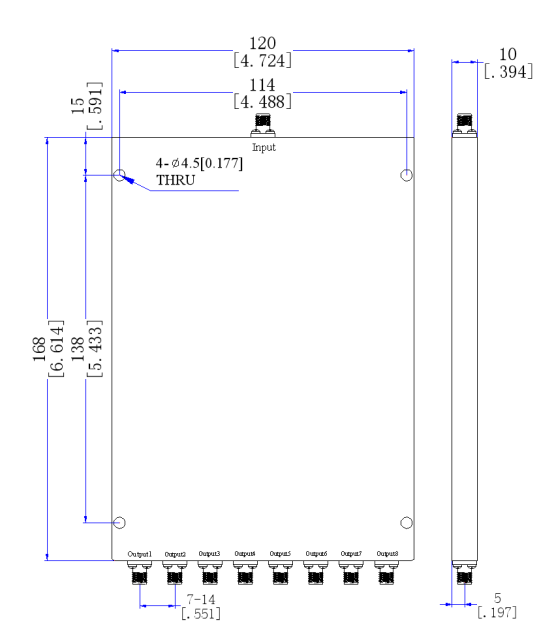

Outline Dimensions:168*120*10（mm）
