Home > All Collections > 300～1600 MHz SMP Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 300～1600 MHz SMP Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 300～1600 MHz SMP Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

300～1600 MHz SMP Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No. MPD-0.3/1.6-2SMP
CONTACT US
  • 300～1600 MHz SMP Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:300～1600 MHz

Insertion Loss ≤ 0.6dB（Excluding theoretical loss:3.0 dB）

Input Port VSWR :Typ.1.16 / Max.1.40

Output Port VSWR :Typ.1.14 / Max.1.20

Isolation:Typ.25dB / Min.18dB

Amplitude Balance:±0.2dB

Phase Balance :±3°

Impedance:50 Ohms

Input/Output Connectors:SMP-Female

Power Rating Splitter:20W; Combiner:1W

Operation Temperature:-45℃ ~ +85℃

Surface Finishing:Black paint

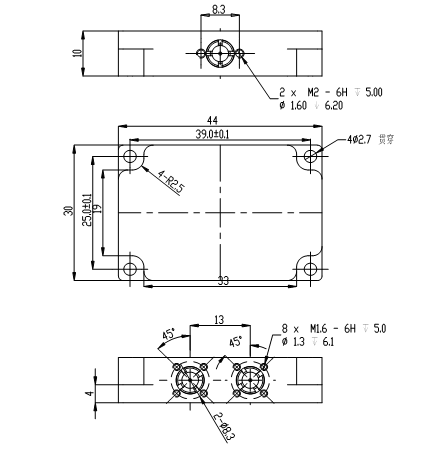

Outline Dimensions:30*44*10（mm）
