Specifications
Frequency Range:300～2000 MHz
Insertion Loss ≤ 1.0 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR :Typ.1.15 / Max.1.25
Output Port VSWR:Typ.1.11 / Max.1.20
Isolation:Typ.28dB / Min.20dB
Amplitude Balance :±0.2dB
Phase Balance :±3°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Gray paint

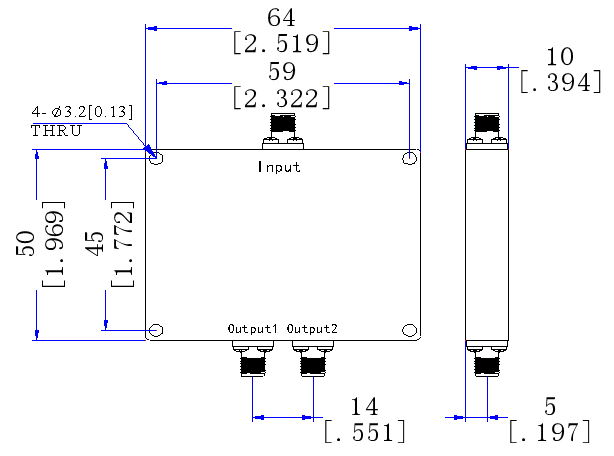

Outline Dimensions:50*64*10（mm）
Weight:75（g）
