Specifications
Frequency Range:300～3000 MHz
Insertion Loss ≤ 2.2dB（Excluding theoretical loss:9.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.25
Output Port VSWR :Typ.1.15 / Max.1.20
Isolation:Typ.25dB / Min.20dB
Amplitude Balance :±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing:Black paint

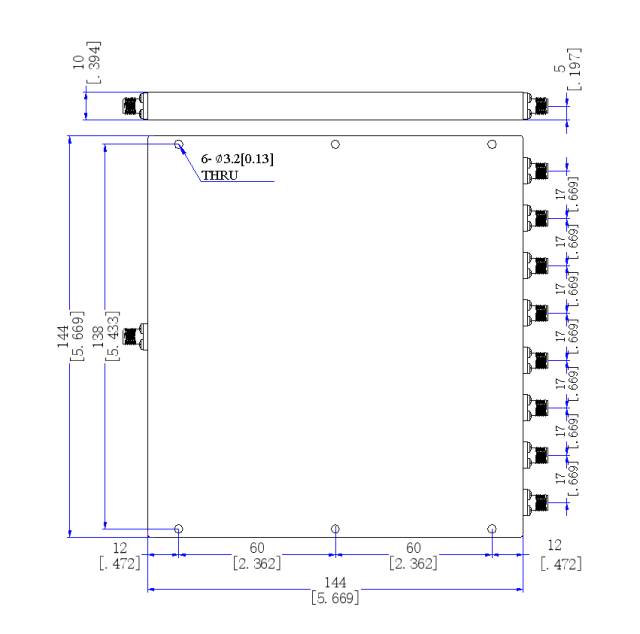

Outline Dimensions:144*144*10（mm）
Weight:480（g）
