300～6000 MHz N Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.3/6-2N80
CONTACT US
  • 300～6000 MHz N Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:300～6000 MHz

Insertion Loss ≤ 2.5dB（Excluding theoretical loss:3.0dB）

Input Port :VSWR ≤1.35: 1（300-360M）＆1. 2: 1（360-6000M）

Output Port: VSWR≤1.20

Isolation:Typ.26dB / Min.18dB

Amplitude Balance:±0.2dB

Phase Balance :±3°

Impedance:50 Ohms

Input/Output Connectors:N-Female；

Power Rating Splitter:80W; Combiner:3W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Black paint

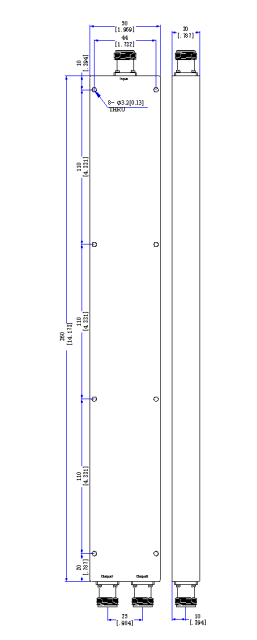

Outline Dimensions:50*360*20（mm）
