Specifications
Frequency Range 345～2000 MHz
Insertion Loss ≤ 1.2dB（Excluding theoretical loss:9.0dB）
Input Port VSWR:Typ.1.18 / Max.1.28
Output Port VSWR:Typ.1.12 / Max.1.22
Isolation:Typ.26dB / Min.20dB
Amplitude Balance:±0.3dB
Phase Balance :±4°
Impedance:50 Ohms
Input/Output Connectors :SMA-Female
Power Rating Splitter:20W; Combiner:1W
Operation Temperature:-40℃ ~ +75℃
Surface Finishing:Black paint

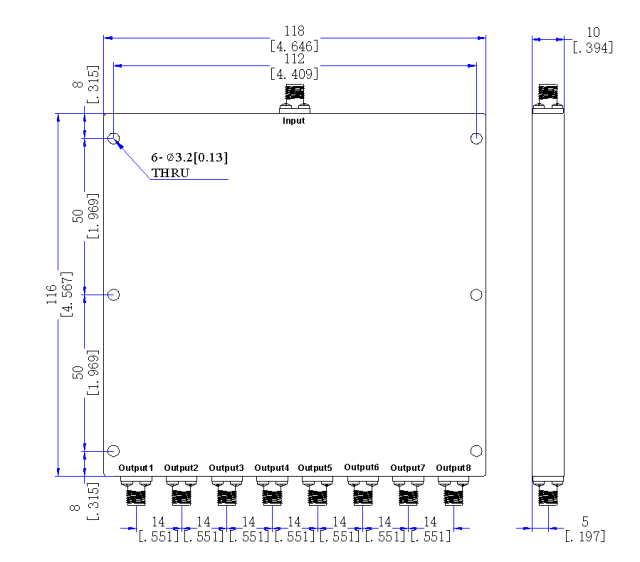

Outline Dimensions:116*118*10（mm）
Weight:500（g）
