350～2000 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-0.35/2-2S
CONTACT US
  • 350～2000 MHz SMA Female 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:350～2000 MHz

Insertion Loss ≤ 0.5 dB（Excluding theoretical loss:3.0 dB）

Input Port VSWR:Typ.1.15 / Max.1.25

Output Port VSWR:Typ.1.11 / Max.1.20

Isolation:Typ.28dB / Min.20dB

Amplitude Balance:±0.2dB

Phase Balance :±3°

Impedance:50 Ohms

Input/Output Connectors：SMA-Female

Power Rating Splitter：30W; Combiner：2W

Operation Temperature：-40℃ ~ +70℃

Surface Finishing：Black paint

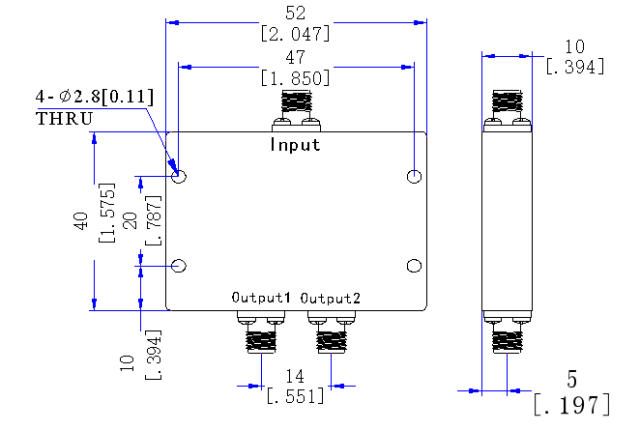

Outline Dimensions:40*52*10（mm）
